WE MANUFACTURE CUSTOM SIZED PRODUCTS UPON REQUEST !!!!
-PLEASE CONTACT US FOR COMPLETE PRODUCT CATALOG AND DEFAULT DIMENSIONS OF THE PRODUCT WITH MORE PRODUCT PICTURES-
Place of Origin: CHINA
Brand Name: SSL
Model Number: FH7-1000
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: crate box
Delivery Time: 15-20 Days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500 per month
Detailed Product Description
Material: Cold-steel Surface: Rusty-proof
Color: White Noise: ≤65 DB

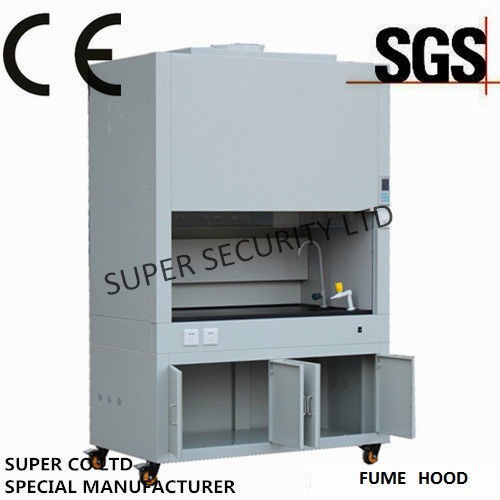

800W - 1400W Chemical Fume Hood , exhaust fume hoods With LCD Display Screen
According to the performance criteria:
US Standard ANSI/NSF49:2002 ; European Standard EN12469:2000 ;Chinese Standard YY0569-2005
UV lamp. Sterilize the working area.
LCD display screen. See the air velocity directly.
The pan is inside. Easy to install, save time.
The air velocity is adjustable ( 6 levels )
Electrical controlled glass.
Base Cabinet (Optional)
Height is 620mm, the exterior size include the cabinet height
Protection Class Class I
Protection Type IP 20
Air Velocity (m/s) ≥0.5m/s
Pipe Collar Φ290
Pipe Strap 1pc
Fluorescent Lamp 15W*1
UV Lamp 20W*1
Exhaust Duct PVC, standard length: 4 meters
Blower Centrifugal fan, speed adjustable. The fan inside the Fume Hood
Glass window Two layer toughen glass, 5mm thickness; Motor control, height adjustable
Power supply 110-220V/50-60Hz(optional)
Power consumption 800W-1400W
Water tap: One
Water cup: one
Gas tap: two
Air tap: one
Water proof socket: two
Material Exterior body :Cold-roll steel sheets, coated with any-bacteria power
Interior: Adopts high grade melamine board with good acid and alkali resistance function
Work table: Using Solid Chemical-Resistant physiochemical board
Optional Accessory Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter
Ext. sizes(L*W*H) 1000×750×2200mm
Work size(L*W*H) 820×620×750mm
Net Weight(kg) 200
Gross Weight(kg) 260
Warranty One year
FH series Fume hoods are the first defense to minimize chemical exposure to research
workers. They are considered the primary means of protection from inhalation of hazardous
vapors. ll-steel fume hood is combined cabinet ,fume cupboard at the top ,operation table in the middle ,the bottom is cabinet ,including water,electricity,gas pipeline system ,three-step steam guidance,air draft no dead corner,can effectively remove poisonous gas .
Touch, intelligent control panel, conditioning exhaust capacity, wind makeup,control light,sockets.
Worktop: Using Solid Chemical-Resistant physiochemical board. Customize is acceptable.
Cabinet Body: all-steel cabinet, coated with any-bacteria power
